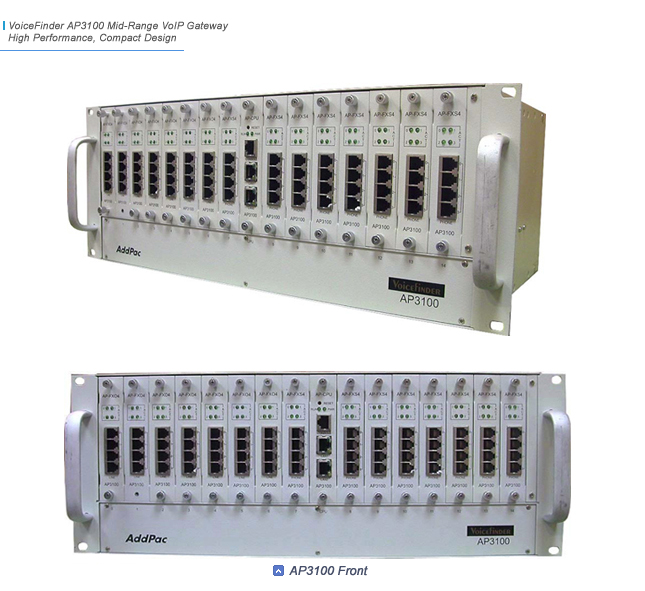

VoiceFinder AP3100 Mid-Range VoIP Gateway provides high-performance voice over IP(VoIP) solution including IP-routing services for large enterprise and government. Moreover, the AP3100 Mid-Range VoIP Gateway maintains best voice quality under not only high bandwidth traffic but also low bandwidth traffic using the latest voice compression algorithm and enhanced QoS management features of AddPac Technologies.
In addition, AP3100 Mid-Range VoIP Gateway can be used in various network environments such as leased line, ADSL, and Cable Modem networking with fixed IP and dynamic IP environments. And VoiceFinder AP3100 Mid-Range supports various network protocols such as IP-routing, bridging, PPP, NAT/PAT, and network management features such as SNMP MIB v2, Cisco-style CLI, Web, etc. This VoIP gateway typically was designed using high-performance PowerPC RISC microprocessor architecture with fixed network interface configuration : 1-Port 10Mbps Ethernet, 1-Port 10/100Mbps Fast Ethernet, asynchronous serial port for console.
APOS Internetworking Software for AP VoIP Gateway
AddPac VoiceFinder Operating System(APOS) is a best VoIP and router software to provide scalability, reliability, stability, and QoS for internetworking solutions. APOS also provides optimized performance and industry standard network functionality with easy-to-use, easy-to-installation, and maintenance.

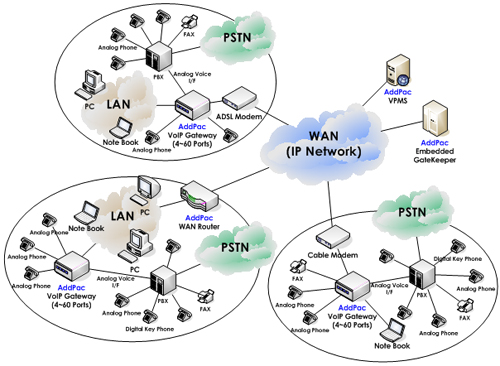

Network Diagram
Number & Call Routing
Trunk Hunting by Preference or Sequential
Calling Hunting by Preference,
Simultaneous, Random
Calling Hunting by Chained Hunting Group
Partition for Address Grading
Call Class for Call Access Control
Number Translation Rule for
Inbound/Outbound Call
Centrex with Prefix Support
Multiple Shared Devices with One Number
Multiple Numbers on One Device
Individual Call Park within Park Number
Pool
Group Call Park within a Group or Other
Group
Call Pickup of Ringing Call of Same Group
or Other Group
Call Pickup of Parked Call
Call Transfer- Blind, Consult
Call Forwarding – Unconditional, Busy, No
Answer, Voice Mail
Call Waiting
Call Swapping
Call Hold
Advanced Features
with AddPac IP phone,
Video Phone, etc
Multiple Call Handling with Call Status and Calling Line Number and Name
Plug and Play with Auto Discovery Function
Softkey Map Download and Control
Telephony and Service
&
Features
Voice Mail List View
Parked Call List View
Call Forwarding Setting
Recent Call List View
Calling Number and Name Identification
Individual Call Park within a Group or
Other Group by Softkey
Group Call Park within a Group or Other
Group by Softkey
Call Pickup of Ringing Call of Same Group
or Other Group by Softkey
Call Pickup of Parked Call by Softkey
Call Transfer – Blind, Consult by Softkey
Call Waiting Indication
Call Swapping by Softkey
Call Hold by Softkey
Conference Control
IP-PBX
Signaling Protocols
SIP Application Server, Proxy, Registrar
and Location Server(RFC3261)
Multiple ITSP Trunk with SIP & H.323
Account Support -IP UA Client Role for Registering to ITSP SIP Server -H.323 Gatekeeper Client Role
for Registering to ITSP H.323 Gatekeeper Server
IVR(Interactive Voice Response)
&
Auto Attendant
Default Auto Attendant Support
IVR Function
Provides with GUI-based Smart IVR Scenario
Editor
Upload/Download Scenario by Smart IVR
Scenario Editor
Supports Multiple Concurrent Scenarios
Support Recordable IVR Prompts
Voice Mail
Support Voice Mail with IVR
Access from Remote Site via Trunk Support
Voice Mail Notification Support
Conference
G.711 u-law, G.711 a-law Internal 3-Party Audio Conference Support
Ad-Hoc Conference
Dial-Out Conference
Meet-me Conference
Multiple External MCU Support (Video, Audio, etc) : AP-MC1000, AP-MC3000
Conference Chair and Participants Management
Music & Announcement
Music on Hold
Replaceable Announcements
Dialing Music/Tone Service
IP-PBX User
&
Device
Management
LDAP(Lightweight Directory Access
Protocol) Support
- Support Hierarchical Organization
System Performance Analysis for Process,
CPU, Connection I/F
Configuration Backup & Restore for APOS
Managements
Debugging, System Auditing, and
Diagnostics Support
System Booting and Auto-rebooting with
Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard)
Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other
Scalability
Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
