IPNext100 is a next-generation IP-PBX and a new IP telephony solution for all IP environments. IPNext 100 inter-works with the user terminals (e.g. AP-VP300, AP-VP200 IP Video Phone, and AP-IP200 IP Phone) of AddPac to provide multimedia IP telephony services as well as the traditional voice-based PBX features. This product is based on the advanced embedded RISC that enables firmware upgrade, and can be equipped with FXS, FXO, and VoIP interfaces depending on options. IPNext100 is suitable for small companies, and inter-works with the VoIP and video products of AddPac to provide a variety of IP application services appropriate for your network. Also, IPNext100 supports H.323 VoIP inter-working as well as SIP protocol for outbound call.
Table 1. Usage of IPNext100
Category
Description
Required Devices for Connection
IP-PBX Feature
Supports call scenarios such as basic call features, call transfer, color ring services, music on hold, 3-party conference calls, voice mails, and IVR.
¡¤ AP-VP300 Video Phone ¡¤ AP-VP200 Video Phone ¡¤ AP-IP300 IP Phone ¡¤ AP-IP200 IP Phone ¡¤ AP-IP100 IP Phone
IP-based Next-Generation IP-PBX

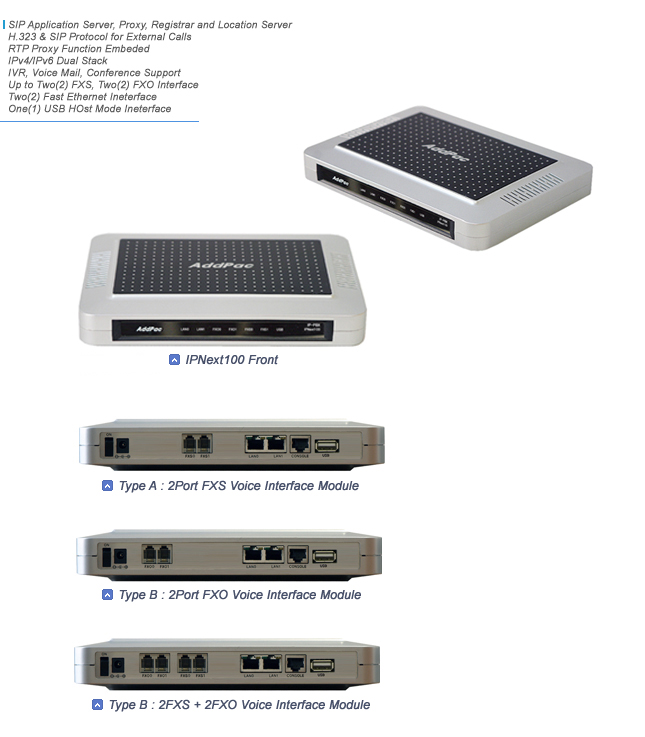

The front panel of AddPac IPNext100 Next Generation Network (NGN) IP-PBX supports LED displays of device status. Its rear panel supports FXS, FXO, and VoIP interfaces depending on options, and has two 10/100 Mbps Fast Ethernet ports, the RS-232C console port for Command Line Interface (CLI), and USB host mode interface port. The VoIP gateway interface on the rear panel can be connected to 2-port FXO and 2-port FXS VoIP interface ports, and supports media gateway features as well as IP-PBX features. The USB host mode port allows you to add the features of IP-PBX in addition to supporting the basic features by being connected either to USB-based memory such USB HDD, USB Flash Memory, and USB wireless LAN or to a network interface device. The call scenarios supported by IPNext100 provide SIP-based basic calls, color ring services, music on hold, blind transfer, call pickup, group call pickup, consult calls, switching calls, consult transfer, call waiting, call waiting notification, call park, call pickup remote, and hunt group. In addition to supporting small capacity voice mails that use internal flash memory, this product is designed to provide application services that require much memory such as voice/video mails using external USB memory such as USB Flash and USB HDD.
RTP Proxy Features
Since the enterprise network environments configured with an SIP server and IP phones require several IP phones, either IP Version 6 or a private IP address in the NAT environment must be supported to the enterprise networks due to the deficient resources of a public IP address. In such a private IP address environment, the RTP proxy feature is required for reliable multimedia communications between endpoint terminals.
The RTP proxy feature of IPNext100 is used to make a communication between a private IP terminal and a public IP terminal among endpoint terminals such as IP phones, make a communication between a private IP terminal and a public IP terminal in the NAT environment, make a communication between private IP terminals, make audio/video broadcasting in private and public IP environments, and to enable audio/video conference calls in private and public IP environments. The RTP proxy feature can operate regardless of VoIP signaling protocols such as H.323 and SIP, and supports dual address systems such as IP Version 4 and IP Version 6.
Intelligent IVR Features
One of the most important IP-PBX features is either ARS or IVR. Different IVR features are required by regular companies, government offices, and call centers respectively. AddPac IP-PBX solutions provide an IVR support tool to meet your requirements. Also, the solutions provide an IVR scenario editor to allow you to make and enable a desired call scenario.
Firmware Upgrade Enabled
Since the high-performance RISC CPU of IPNext100 is programmable, the features of IPNext100 can continue to be improved, changed, or added. If you download an added or changed feature from the home page directly or set an automatic upgrade option whenever feature addition or change is done, you can use the latest features without further operations.
Reliable IP-PBX Solution
IPNext 100 is an integrated network device that supports routing services, NAT/PAT, DHCP Server/Relay, and Quality of Service (QoS). If you want to adapt to a variety of network environments such as Metro Ethernet, Metro ATM, dedicated lines, flexible IP environments, and high-speed private subscriber networks such as xDSL, cable networks, and FTTH, advanced QoS and security features in addition to multiple network services should be supported. In this regard, IPNext 100 supports two 10/100 Mbps Fast Ethernet interfaces. Based on this support, IPNext 100 supports advanced LAN-to-LAN routing and bridge services as well as various network and security services such as NAT/PAT. AddPac IPNext 100 IP-PBX is a reliable solution built by using excellent technologies.
AddPac IP-PBX Total Solution
AddPac Technology is not just a vendor of IP-PBX, but provides various product families appropriate for your network environment. To meet your needs, AddPac supports VoIP and media gateways, audio/video terminals, PoE support switches, external audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR, audio/video recording solutions, and traffic controller QoS device solutions. In the future all IP-based multimedia telephony environment, various audio/video resources should be shared on an IP network; thus, the integration of the entire solution and that of solutions for each area are very important. AddPac IP-PBX is designed considering the integrated multimedia solution, and can meet your various needs.
The performance and reliability of AddPac VoIP gateway series and multimedia network devices have been recognized in global markets. IPNext 100, which is a collection of experiences and know-how accumulated in the enterprise and service provider markets, would meet the needs of customers who ask for a next-generation IP-PBX solution.

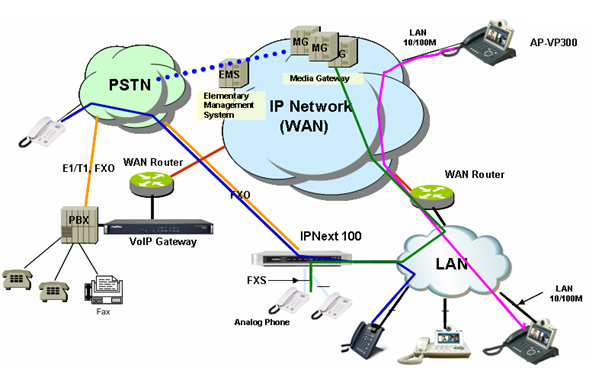

Network Diagram
Overall Features
High Quality RISC Microprocessor + DSP
Flash
Memory 16MByte, SDRAM 128MByte
Two(2)-Port
FXS(Model A), Two(2)-Port FXO(Model B), Two(2)-Port FXS and FXO (Model C
)
Network Interface: 2-port 10/100 Mbps
Fast Ethernet interface
1-port RS-232C serial console interface
USB host mode interface (USB HDD, USB
Flash Memory, and USB wireless LAN, etc.)
User
Terminals : AP-VP300, AP-VP200, AP-IP300, AP-IP200, AP-IP190, etc
IP-PBX Features: Supports various call
scenarios, color ring service, and music on hold, etc.
Supports SIP signaling, H.323
inter-working.
Supports the RTP proxy service
features.
Supports a scenario editor for IVR
services and support tools.
Supports the voice mail features.
Supports 3-party calling features
(Voice codecs: G.711 and G.276).
VoIP gateway service features.
Fault
tolerant and Scalability
CPU
High Performance RISC Integrated Host
Processor
Memory
System Memory
16Mbyte Flash Memory
Main Memory
128Mbyte SDRAM
Boot Memory
512Kbyte Flash Memory
LAN Interface
LAN0 Port
One(1) 10/100Mbps Fast Ethernet
LAN1 Port
One(1) 10/100Mbps Fast Ethernet
Console Port
One(1) RS-232C Interface for CLI
USB Port
USB 1.1 Host Mode Interface
Voice Interface
Model A
2-Port FXS Voice Interface Module (2 x
RJ11)
Model B
2-Port FXO Voice Interface Module (2 x
RJ11)
Model C
2-FXO & 2-FXS Voice Interface Module (4 x
RJ11)
Power & Operation Environments
Power Requirement
Power VAC 110~220 VAC, 50/60Hz, 15Watt
Operating Temperature
0¡ÆC ~ 50¡ÆC (32¡Æ ~ 122¡ÆF)
Storage Temperature
-40¡ÆC ~ +85¡ÆC (-40¡Æ ~ +185¡ÆF)
Relative Humidity
5% ~ 95% (Non-condensing)
Dimension
H x W x D (mm)
43 x 265 x 165 (mm , H x W x D)
Weight (Kg)
0.75Kg
Number & Call Routing
Trunk Hunting by Preference or Sequential
Calling Hunting by Preference,
Simultaneous, Random
Calling Hunting by Chained Hunting Group
Partition for Address Grading
Call Class for Call Access Control
Number Translation Rule for
Inbound/Outbound Call
Centrex with Prefix Support
Multiple Shared Devices with One Number
Multiple Numbers on One Device
Individual Call Park within Park Number
Pool
Group Call Park within a Group or Other
Group
Call Pickup of Ringing Call of Same Group
or Other Group
Call Pickup of Parked Call
Call Transfer- Blind, Consult
Call Forwarding – Unconditional, Busy, No
Answer, Voice Mail
Call Waiting
Call Swapping
Call Hold
Advanced Features with AddPac IP phone, Video Phone, etc
Multiple Call Handling with Call Status
and Calling Line Number and Name
Plug and Play with Auto Discovery Function
Softkey Map Download and Control
Telephony and Service
&
Features
Voice Mail List View
Parked Call List View
Call Forwarding Setting
Recent Call List View
Calling Number and Name Identification
Individual Call Park within a Group or
Other Group by Softkey
Group Call Park within a Group or Other
Group by Softkey
Call Pickup of Ringing Call of Same Group
or Other Group by Softkey
Call Pickup of Parked Call by Softkey
Call Transfer – Blind, Consult by Softkey
Call Waiting Indication
Call Swapping by Softkey
Call Hold by Softkey
Conference Control
IP-PBX Signaling Protocols
SIP Application Server, Proxy, Registrar
and Location Server(RFC3261)
Multiple ITSP Trunk with SIP & H.323
Account Support
-IP UA Client Role for Registering to ITSP SIP Server
- H.323 Gatekeeper Client Role for
Registering to ITSP H.323 Gatekeeper Server
IVR
(Interactive Voice Response)
& Auto Attendant
Default Auto Attendant Support
IVR Function
Provides with GUI-based Smart IVR Scenario
Editor
Upload/Download Scenario by Smart IVR
Scenario Editor
Supports Multiple Concurrent Scenarios
Support Recordable IVR Prompts
Voice Mail
Support Voice Mail with IVR
Access from Remote Site via Trunk Support
Voice Mail Notification Support
Conference
G.711 u-law, G.711 a-law, G.726 Internal
3-Party Audio Conference Support
Ad-Hoc Conference
Dial-Out Conference
Meet-me Conference
Multiple External MCU Support (Video, Audio,
etc) : AP-MC1000
Conference Chair and Participants Management
Music & Announcement
Music on Hold
Replaceable Announcements
Dialing Music/Tone Service
IP-PBX User & DeviceManagement
LDAP(Lightweight Directory Access
Protocol) Support
- Support Hierarchical Organization
System Performance Analysis for Process,
CPU, Connection I/F
Configuration Backup & Restore for APOS
Managements
Debugging, System Auditing, and
Diagnostics Support
System Booting and Auto-rebooting with
Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard)
Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
