The AddPac IPNext 700 is a next generation, multimedia IP communication system that supports a rich set of IP converged applications. The IPNext 700 provides economical migration to integration of a wide range IP telephony connectivity with AddPac Customer Premise Equipment (including Video Phone and IP Phone Series), as to complete end-to-end IP convergence solution. The IPNext 700 supports not only many of the existing and traditional voice-centered PBX features, but also multimedia video, voice communication and broadcasting features.
Designed on the foundation of high performance embedded RISC CPU and dual HDD fail safe system (RAID1 configuration), IPNext 700 supports various IP based voice and video terminals, systems of AddPac Technology such as MCU, Media Server, Unified Messaging Server. It¡¯s ideal IP-PBX system for medium and large businesses taking a full advantage of new ¡®all-in-one¡¯ concept with voice and video call handling server, user presence server, RTP proxy server integrated.
Next Generation IP PBX

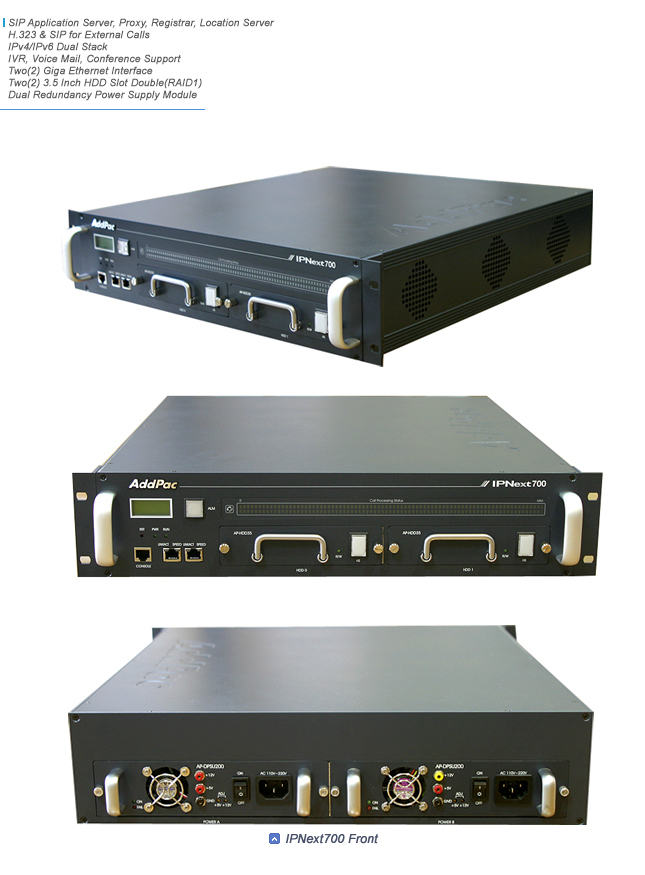

AddPac IPNext 700 NGN(Next Generation Network) IP-PBX comes with two(2) 3.5 inch HDD module slot(RAID 1), two(2) 10/100/1000Mbps Gigabit Ethernet port and Console port at the front part of chassis. Also the front of IP Next 700 also provides LED array which has been designed to grasp the number of calls being processed for the entire capacity at a glance.It features a wide variety of call scenarios such as Basic Call, Coloring Service, Music on Hold, Blind Transfer, Call Pickup, Group Call Pickup, Consult Call, Switching Call, Consult Transfer, Call Waiting, Call Waiting Notify, Call Park, Call Pickup Remote, Hunt Group. This IPNext 700 use the Session Initiation Protocol (SIP) protocol for internal calls and has been designed to support SIP and H.323 for external outbound, inbound call interoperability with softswitch or Gatekeeper.In addition, 3.5 inch Dual IDE high capacity HDD for RAID 1 configuration is well-suited to the services which need sizable memory capacity such as Voice Mail ensuring the system consistency and the high availability.
One of the most important features of IP-PBX is Automatic Response System (ARS) or Interactive Voice Response (IVR) functionality. Companies, public offices, call centers and other types of enterprises may require different IVR functions. Customizable and time saving capabilities of AddPac¡¯s IP-PBX solution can fulfills all these different types of requirement by providing a great flexibility of IVR Scenario Editor. AddPac IP-PBX solution provides the IVR scenario editor and IVR function management tool to bring satisfaction for each business to maximize application productivity by helping them to design and operate their own Call scenario.
3-Party Conference Call
AddPac IP Next700 Next Generation IP PBX offers an optional conference call feature which is supported by Multipoint Control Unit (MCU), hardware-based Digital Signal Processing (DSP). The voice module of MCU supports various standards of Codec includes G.723.1, G.729, G.726, G.711. The MCU supports two (2) sessions for 3-Party Conference Call.
Firmware Upgradeable Architecture
Designed on programmable high performance RISC CPU and DSP, IPNext 700 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. New firmwares for AddPac IP-PBX solution components such as video phone, IP phone, User Agent tool can be downloaded from not only web page but also IPNext IP-PBX. IPNext¡¯s software version upgrade system adopts top-down approach and provides IP-PBX system administrators with easy-to-use and efficient methods to achieve the overall management.
Outstanding Network Service Capability
IPNext 700 is an integrated, feature-rich network equipment delivering routing, NAT/PAT, DHCP Server/Relay, Public IP sharing, VRRP and QoS. In today's mixed network of xDSL, Cable, FTTH, Metro Ethernet, Metro ATM, Leased line and dynamic IP environment, not only the ample network service features, but also high-end QoS(Quality of Service) and security features are requested. Based on two(2) 10/100/1000Mbps GigabitEthernet ports, IPNext 700 offers integrated network and security service of LAN-to-LAN routing, bridge and NAT/PAT.
AddPac IP-PBX Total Solution
As ¡®All IP¡¯ multimedia telephony environment is becoming a reality with advanced next generation networking technology, there is now critical demand of optimal integration of the solutions. AddPac Technology offers a range of solution covering VoIP and Media gateway, audio/video terminal equipments, external audio/video MCU, IP audio/video broadcasting and VoD solution, Network DVR, audio/video record&archive solution, Traffic controller, QoS equipment to meet customers¡¯ various communication requirements, so you can best optimize your network environment to maximize benefit from convergence of multimedia communication.
AddPac's various VoIP gateway series, multi service routers and comprehensive family of cutting-edge solutions have delivered high performance and stability to maximize customer satisfaction throughout the world. They provide high level of flexibility and scalability for each organization to find the solution that best fits their application needs and budget. With years of experience and industry-leading technology, AddPac provides IPNext 700 with which customers can best optimize high performance, market strategy and budget for next-generation communication solution.

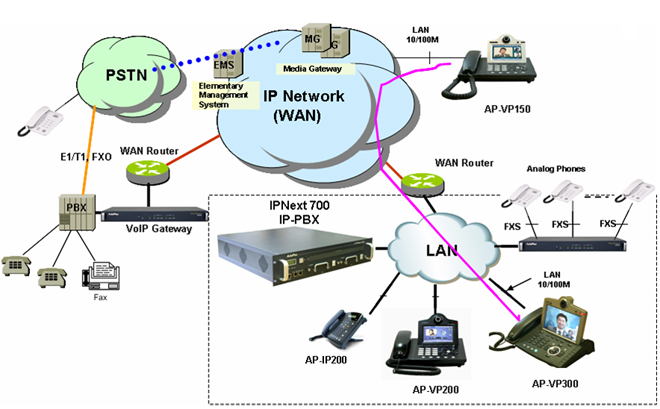

Network Diagram
Overall Features
High Performance Software Architecture of RISC
Flash Memory 16MByte, SDRAM 256MByte
Two(2) Hard Disk Module Slots for RAID1 Configuration
¨ç
Two(2) Hard Disk Module Slots for RAID1
Configuration
System Performance Analysis for Process,
CPU, Connection I/F
Configuration Backup & Restore for APOS
Managements
Debugging, System Auditing, and
Diagnostics Support
System Booting and Auto-rebooting with
Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard)
Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
